Z Section Door & Window Machine Manufacturer in India

If you’re comparing Z section roll forming machines for door or window frame production, the decision usually comes down to two things — will the gauge hold consistent across a full production run, and will the vendor still answer your call six months after delivery. As a z section door manufacturer in India and a z section window manufacturer in India, Nirmal Overseas builds machines with both covered. Here’s exactly what you get.

Nirmal Overseas Z Section Machines — What We Manufacture

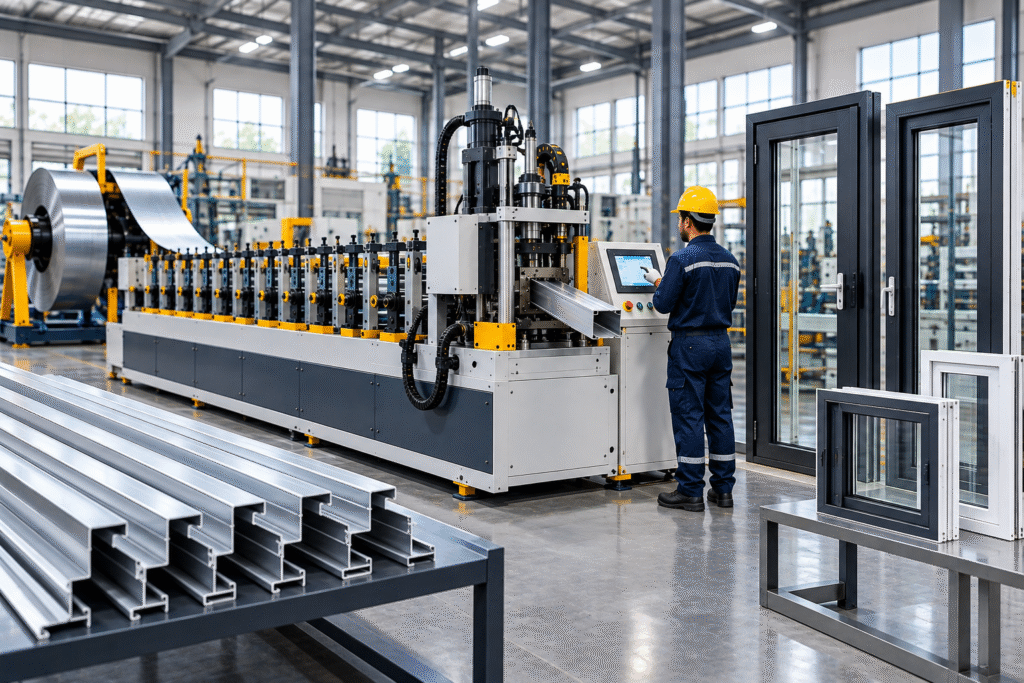

We design and build Z section roll forming machines for two distinct output lines — one calibrated for door frame gauge, one for window frame gauge. Both run on galvanized steel coil and produce structural Z profiles used in framing, prefab wall systems, and structural support work — closely related to what our purlin machines produce for roofing and wall support applications. Every machine is assembled, tested, and tolerance-checked at our own facility before it ships — not sourced from a third-party fabricator and rebranded.

Z Section Door Machine — Specifications and Application

Our Z section door machine line is built for heavier gauge output, since door frames carry more load and see repeated operational stress.

• Gauge range: 1.6mm–2.5mm galvanized steel
• Coating capability: Z275–Z350 zinc coating support
• Typical buyer output: industrial shutter doors, warehouse gate frames, factory entrance framing
• Roll station configuration: heavy-duty stations built to hold shape under thicker coil feed

This line suits fabricators supplying industrial and commercial door manufacturers who need frame strength that doesn’t flex or warp under daily door operation.

Z Section Window Machine — Specifications and Application

The window machine line runs on a lighter gauge setup, matched to what window frames actually need structurally.

• Gauge range: 1.2mm–1.8mm galvanized steel
• Coating capability: Z120–Z275 zinc coating support
• Typical buyer output: residential window frames, ventilator frames, prefab office cabin windows
• Roll station configuration: standard stations, optimized for lighter coil without over-engineering the run

Buyers producing for residential builders or prefab cabin manufacturers use this configuration, since it matches actual load and cost requirements without paying for door-grade tooling they don’t need.

How Nirmal Overseas Manufactures Z Section Door & Window Machines?

Every Z section machine we build runs a galvanized steel coil through 12 to 18 precision-calibrated roll stations, shaping the profile in stages until it reaches final Z geometry. A few things we control specifically during machine assembly:

• Servo-controlled feeding system — keeps coil feed speed constant, so the profile dimension doesn’t drift between the start and end of a run
• In-line punching stations — hole spacing for bolting stays accurate without a separate punching pass
• Roll tooling calibrated for Indian coil specifications — most imported machine templates are built for overseas coil widths and steel grades, meaning recalibration the moment you switch to locally sourced steel; our tooling skips that problem from day one
• Cutting station accuracy — automated length cutting with tolerance checks built into the cycle, keeping batch-to-batch length variance minimal

This is the part that actually separates machine vendors — not the roll forming concept itself, which is fairly standard, but how tightly the tooling holds tolerance across thousands of running meters.

Z Section Machine Customization — Coil Width, Automation, and Output Speed

We don’t sell one fixed configuration. Depending on your production volume and existing setup, we adjust:

• Coil width capacity — matched to your steel supplier’s standard coil sizes
• Automation level — manual operation for lower-volume buyers, PLC-controlled operation for continuous shift production
• Output speed — configured around your downstream capacity, so the line isn’t producing faster than your cutting or dispatch process can handle

This is worked out during quotation, not after delivery — so the machine you receive fits your actual production line, not a generic factory default.

Quality Checks Before Every Z Section Machine Dispatch

Before any Z section machine leaves our facility, we run it through a test production batch and check:

• Gauge thickness consistency across the sample run
• Flange angle accuracy on the Z profile
• Hole alignment from the in-line punching station
• Cut length variance across multiple pieces

If any of these fall outside tolerance, the machine doesn’t ship — standard procedure on every unit, not a premium add-on for larger orders.

Why Buyers Choose Nirmal Overseas for Z Section Machine?

• ISO-certified manufacturing process — documented quality control from raw material intake to final assembly, available for buyer verification
• Tolerance test reports provided with delivery — actual measured data from your machine’s test run, not just a spec sheet promise
• Trial run before final payment — we run your machine on a sample batch so you can inspect output before confirming the order
• After-sales service on roller alignment and spare parts — support continues after installation, not just through the warranty period

Get complete technical specifications and configuration options by reaching out to our team directly.

Industries Running Our Z Section Machines

Buyers running our Z section door and window lines are supplying profiles into:

• Warehouse and industrial shed construction — door framing and purlin sections for large-span structures
• Prefab and modular construction — site offices, temporary structures, and modular housing needing fast-assembly framing
• Residential building projects — window and ventilator frame supply for mid-rise apartment construction
• Cold storage panel framing — structural support where added insulation panel weight needs consistent load-bearing strength

The same base machine architecture, with roll station and coil width adjustments, covers all four use cases — so you’re not buying separate equipment for separate customer segments.

Service Areas

We proudly serve clients across India, including Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Andaman and Nicobar Islands, Chandigarh, Dadra and Nagar Haveli and Daman and Diu, Delhi, Jammu and Kashmir, Ladakh, Lakshadweep, and Puducherry.

Frequently Asked Questions

Does Nirmal Overseas manufacture separate machines for Z section doors and windows, or one adjustable line?

We offer both — dedicated door-gauge (1.6mm–2.5mm) and window-gauge (1.2mm–1.8mm) lines, or a single adjustable setup with roll stations and coil width configured to switch between the two ranges. Which one you get depends on your production volume and whether you need dedicated or flexible tooling.

What is included in the quality check before a Z section machine is dispatched?

Every machine runs a test production batch before shipping, checking gauge thickness consistency, flange angle accuracy, punching hole alignment, and cut length variance. Tolerance test data from this run is provided with delivery.

Is a trial production run available before finalizing a machine order?

Yes. We run your specified gauge and coil width through a sample batch so you can inspect the output — thickness, alignment, and finish — before confirming payment.

What after-sales support does Nirmal Overseas provide for Z section machines?

We provide roller alignment support and spare parts availability after installation, along with technical guidance if output quality shifts during long-term operation. This continues beyond the standard warranty period.

How is machine automation level decided — manual or PLC-controlled?

This depends on your production volume and shift pattern. We discuss this during quotation — manual operation suits lower-volume buyers, while PLC-controlled setups suit continuous multi-shift production.

Get in Touch for Your Z Section Machine Requirement

If you’re ready to discuss specifications against your coil width, gauge requirement, and production volume, our team can configure a setup around your exact needs — not a generic package. Share your requirements and get started.
